Can the XL attach to a jack?

An XL unit purchased after April 2024 does have the ability to have a side mounted trailer jack slotted in.

If you have an XL unit that was purchased before this time, you may need to have the rotating coupler replaced if you would like to use the unit with a jack.

The XL unit is often not compatible with center (coupler mounted) jacks as the coupler does not leave much space to maneuver the dolly.

Side mounted jacks are recommended.

Please note that use with a jack does lower the effective weight capacity of the unit to 8,500 lbs. Excessive side loading of trailer weight should also be avoided.

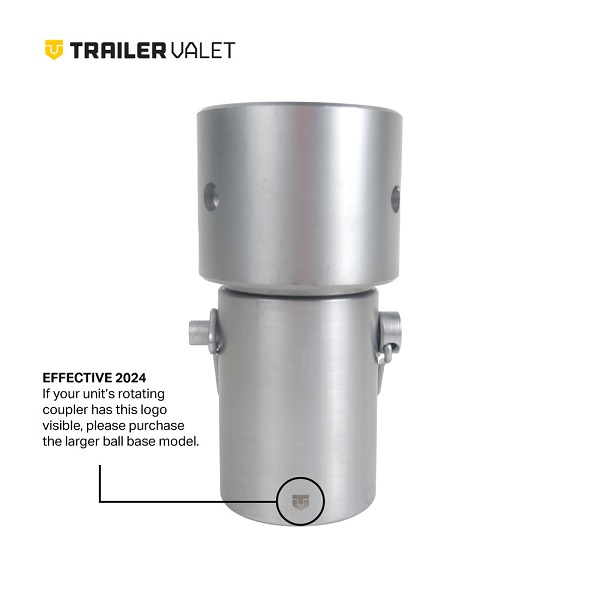

If you would like to check if your unit is compatible, you can check for a TV logo at the bottom of your rotating coupler (where your hitch ball base slots in).

If the logo is present, the XL can be used with a jack.

• Related Articles

• What is the plate on my XL for?

  When installed correctly, the plate keeps the locking nut of the XL flush with the coupler, which in turn reduces the possibility of damage on the coupler should the XL pivot due to excess horizontal force. Install the plate by placing it under the ...

• Can the MV be used with / attached to a jack?

  Yes, your MV unit can attach to a side mounted jack jack. The XL unit is often not compatible with center (coupler mounted) jacks as the coupler does not leave much space to maneuver the dolly. Please note that this does lower the effective weight ...

• My trailer uses a standard A-Frame hitch assembly loaded with a battery, winch and propane tank, all of which consume space on the hitch tongue. Would the XL work with this?

  The XL handles this well as you can use the coupler to move the trailer.

• Can the Trailer Valet XL remain attached to the trailer while in motion?

  No, only the 5X is able to be put into a stow position.

• What is the proper tire inflation?

  The current XL unit has solid rubber tires. Pneumatic tires that require inflation are only found on 5X units and older models of the XL. This does not apply to new XL models nor all XL-Pro units.
